DESCRIPTION

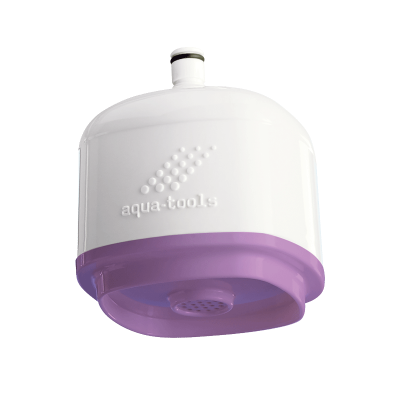

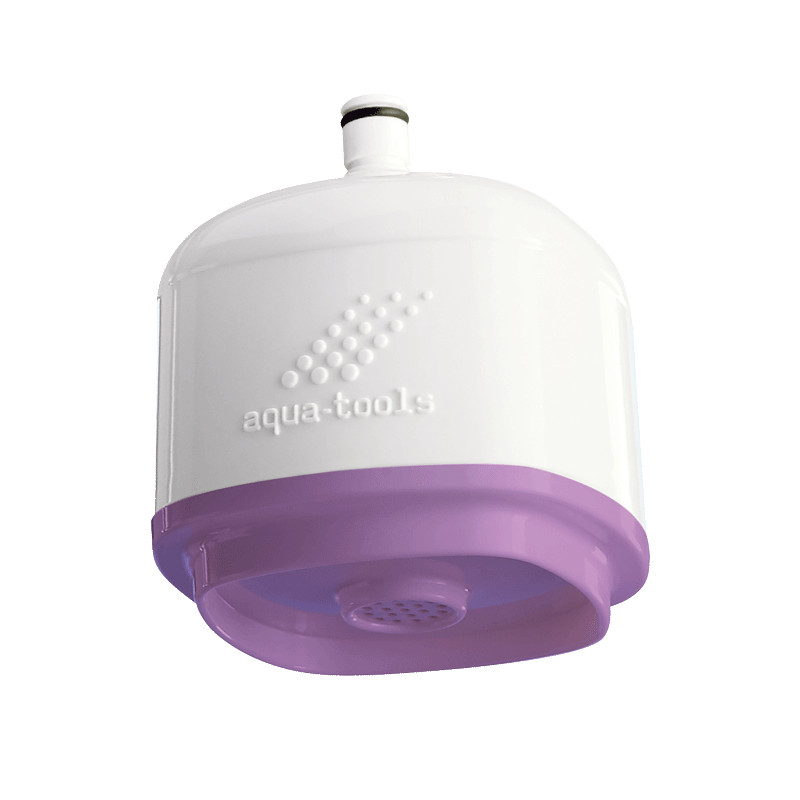

FILT’RAY 2G 2-month tap filter
Ref. AT030719AQUATOOLS anti-Legionella and anti-germ faucet filter.
Device: MBS.
Membrane type: tubular microfiltration.
Membrane: polyethylene.
Molecular weight cut-off: 0.1 μm nominal and 0.2 μm absolute sterilizing grade.
Filtration flow rate: 1.7 gal/min at 43.5 psi and 06. gal/min at 14.5 psi
(filter only, excludes any flow rate restriction in the faucet).
Maximum upstream pressure at the point-of-use: 72.5 psi.
Maximum lifespan: 2 months from installation.
Resistance to thermal shocks: 158°F for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class I Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Box of 10. Each filter is individually wrapped and sterile.
Device: MBS.
Membrane type: tubular microfiltration.
Membrane: polyethylene.
Molecular weight cut-off: 0.1 μm nominal and 0.2 μm absolute sterilizing grade.
Filtration flow rate: 1.7 gal/min at 43.5 psi and 06. gal/min at 14.5 psi
(filter only, excludes any flow rate restriction in the faucet).
Maximum upstream pressure at the point-of-use: 72.5 psi.
Maximum lifespan: 2 months from installation.
Resistance to thermal shocks: 158°F for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Sterile filter.
FILT’RAY 2G sterile disposable water filters are:
CE marked Class I Medical Devices in Europe that comply with directive 93/42/CEE;
Class II Medical Devices in the U.S.A. with FDA-510(K) clearance;
Class I Medical Devices in Canada that comply with SOR/98-282.
Box of 10. Each filter is individually wrapped and sterile.
ADVANTAGES

Anti-Legionella and anti-germ

Lifespan: 2 months from installation

Bubl'air Wash: longer filter life

Rapid installation with no tools required
TECHNICAL CHARACTERISTICS
FILT’RAY 2G 2-month tap filter

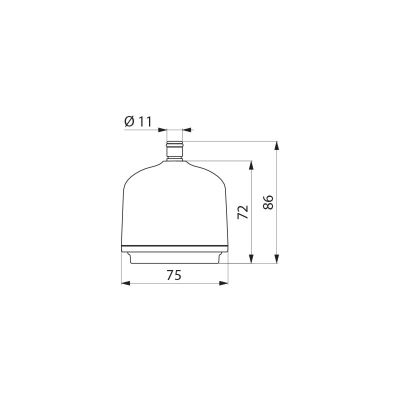

Ref. AT030719Technology | Point-of-use filtration |
Height | 2.83 in; 72 mm |
Length | 2.95 in; 75 mm |
Flow rate | 1.7 gal/min at 43.5 psi, 0.6 gal/min at 14.5 psi; 6.3 lpm at 3 bar, 2.2 lpm at 1 bar |
Lifespan | 2 months |
Certificates |
![]() ![]() ![]() |
VARIANTS
AT030720 | Shower flow |
---|
VARIANTS
AT030720 | Shower flow |
---|
